Description

OREI UHD-PRO 108: 1×4 HDMI Splitter

Key Features:

• Up to 4K@60Hz HDMI resolution supported)
• HDCP 2.2 compliant
• HDMI (Pixel Clock Rate: 25MHz ~ 600 MHz)
• HDR supported
• Down-scaling for 4K content to 1080p display
• EDID Management
• DTS HD, Dolby TrueHD lossless digital audio compliant
• No loss transmission with amplifier and equalizer function
• Distribute the same HDMI signal to up to 4 HDMI display devices

• Few sample applications:

  The OREI UHD-PRO108 is a reliable distribution amplifier-powered splitter that will take HDMI signal up to 4Kx2K@60Hz, 1080p 3D and duplicate the signal to up to 2 HDMI displays simultaneously, creating an impressive lossless image or audio transmission via HDMI cable.

  Compact, durable and easy to set up and operate. Ideal for trade show, conference room, lecture halls, bedroom, living room, kitchen room and backyard.
  Please note that this splitter will duplicate the source to the four output displays. It can’t be used to extend a desktop for PC or a laptop. If the connected displays do not support the same resolution then the splitter will lower the output resolution to the next best resolution supported by both displays and same goes with the audio signal. We recommend using this splitter with high-quality HDMI cables 30 feet or less.

  EDID management switch – Set on COPY to copy the supported audio signal from HDMI output 1 to the HDMI output 4 display. Set on AUTO to automatically detect and send the same audio signal supported by both displays.

  Resolutions: Up to ultra HD 4Kx2K@60Hz with 12bit, support 4Kx2K@30Hz with 24bit YCBCR 4:2:2. Deep Color up to 4K x 2K (3840 x 2160 @60Hz), 1080P (1920 x 1080@60Hz) & 3D Support.

  Support All Audio: LPCM 7.1CH. Dolby TrueHD, and DTS-HD Master Audio Power Adapter: DC 5V 1A

  [tab]

  AUDIO AND VIDEO

  Inputs:		1 × HDMI Type A (19-pin female)
  Output Ports:		8 × HDMI Type A (19-pin female)
  Video Bandwidth:		18 Gbps
  Video Resolution:		4K@60Hz (4096×2160), 1080P@60Hz (1920×1080)
  Color Space:		RGB, YCbCr 4:4:4, YCbCr 4:2:2 (A mode no support), YCbCr 4:2:0
  HDMI Audio Formats:		PCM 2CH, PCM 5.1, PCM 7.1, DTS, DTS-HD, Dolby 5.1, Dolby 7.1, Dolby TrueHD

  COMMUNICATION AND CONTROL

  HDMI Compliance		HDMI 2.0
  HDCP Compliance		HDCP 2.2

  POWER

  Power Supply:		DC 5V @600mA (MicroUSB)
  Power Consumption:		480mA

  ENVIRONMENTAL

  Operating Temperature:		0°C to 40°C (32°F to 104°F)
  Storage Temperature:		-20°C to 60°C (-4°F to 140°F)
  Relative Humidity:		10 ~ 90 % RH (no condensation)

  DIMENSIONS & WEIGHT

  Height:		20.6 mm
  Width:		152 mm
  Depth:		63 mm
  Weight:		102 g

  REGULATORY

  REGULATORY:		CE | FCC | RoHS

  PACKAGE CONTENTS

  1 × UHD-PRO108 1×8 HDMI Splitter
  1 × Power Adapter
  1 × User Manual

  Warranty

  1 – Year Manufacturer s Warranty

  [ tab]

  [tab1]

  FAQs

  Can we use this splitter with Elgato capture card?

  Our splitters will not work with capture cards due to the HDCP encryption on the output

  Can the splitter show two different images on the different screens?

  Our HDMI splitter will duplicate or mirror a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously

  Does this HDMI splitter support extend mode?

  Our splitter does not support extend mode. It only supports mirror duplicate screen function, each screen will show the same picture

  Does the power adapter support 220V input?

  Yes, the power adapter does support 220V

  What is the maximum length of HDMI outputs?

  You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.

  However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.

  Does this support HDMI-CEC function?

  No, the HDMI splitters do not support CEC because most customers do not want all the TV s to turn ON as soon as the source is turned ON.

  Does this support auto downscaling function?

  Yes, it does support auto downscale from 4K to 1080p

  Which HDCP version does UHD-PRO104 supports?

  It supports HDCP 2.2

  Does UHD-PRO104 supports HDR?

  Yes

  var acc = document.getElementsByClassName( accordion );
  var i;

  for (i = 0; i < acc.length; i++) {
  acc[i].onclick = function(){
  this.classList.toggle( active );
  this.nextElementSibling.classList.toggle( show );
  }
  }
  [ tab1]

  [shortdes]

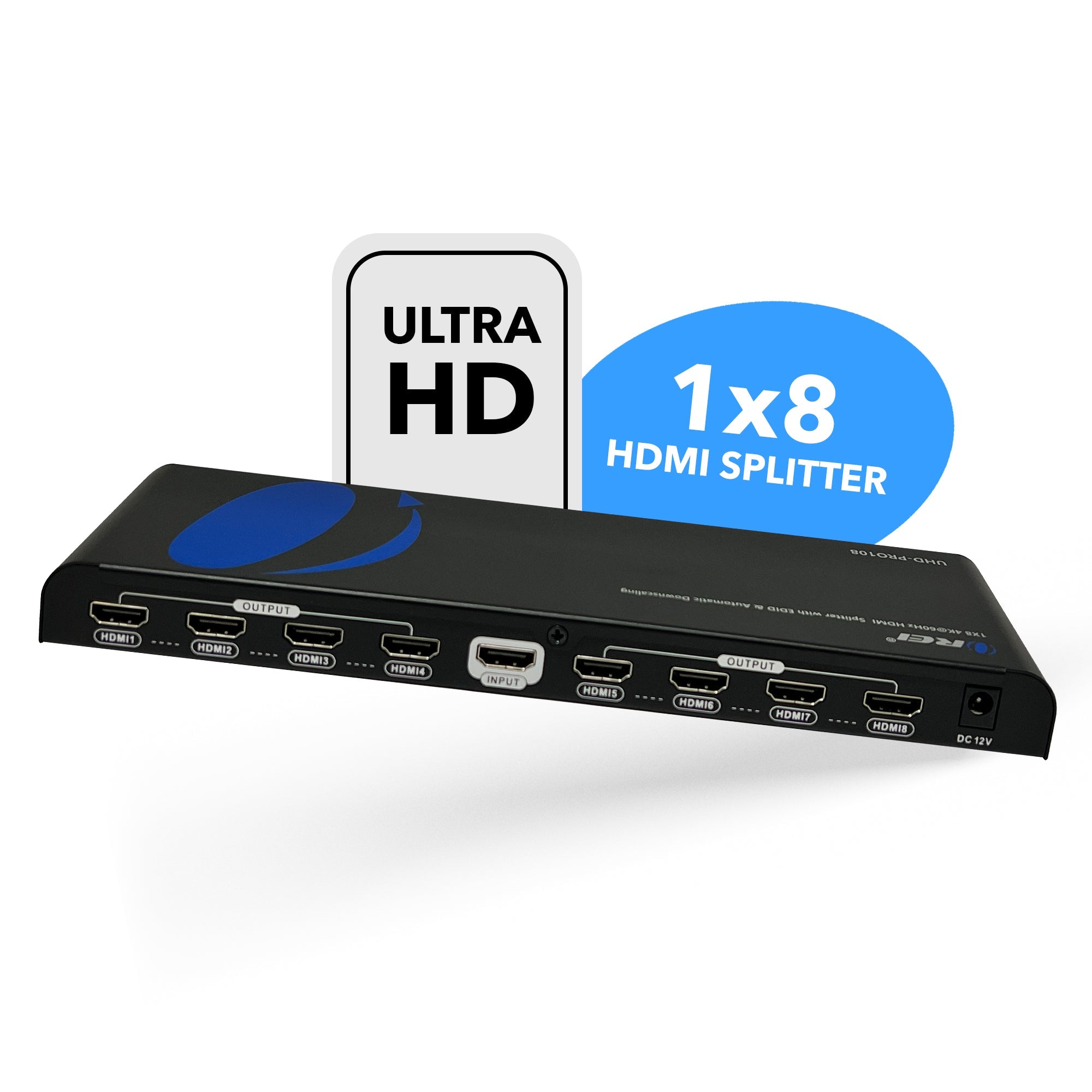

  • Split 1 HDMI Source to 8 identical displays – 3D Support
  • Video resolution upto 4K@60Hz – 4K > 1080p downscaling function
  • Dolby Vision, HDR – EDID Control
  • Compliance: HDMI 2.0 – HDCP 2.2
  • [ shortdes]
