Summary

Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Diamante multi split systems are available in 4 versions; for 2, 3, and 4 zones.

• Ultra-high efficiency inverter++ ductless multi split dual (2) zone heat pump system
• (x2) inside unit cooling capacity: 9,000 BTU H nominal capacity, condensing system 17,000 BTU H (Range: 5,100 minimum – 18,700 maximum) with 22 SEER 12.5 EER efficiency
• Heating capacity: 19,600 BTU H nominal (range 4,900 minimum – 23,000 maximum) with 10 HSPF 3.5 COP efficiency
• Voltage: 208 – 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
• Energy-Star Certified and Wi-Fi Enabled

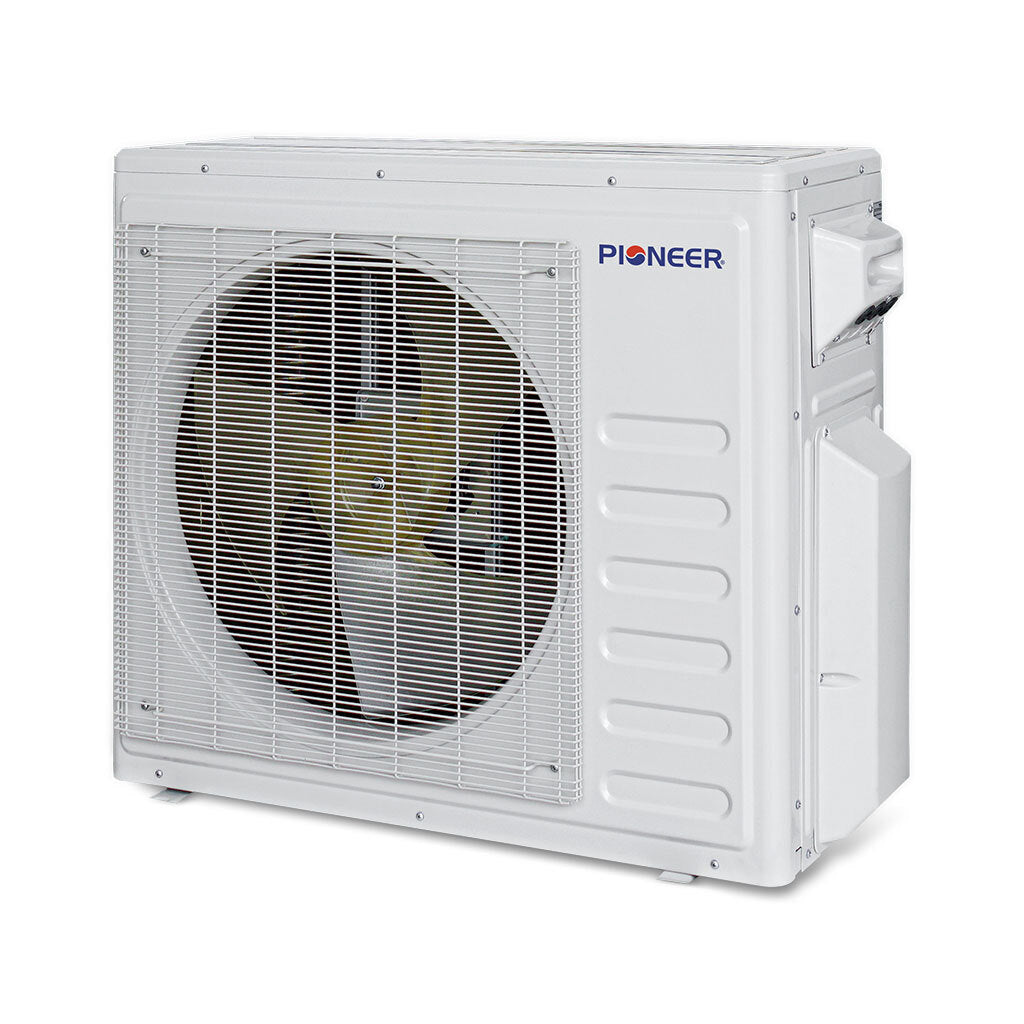

• Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
• Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
• Low ambient system can heat with high capacity at -4°F ambient outdoor temperatures
• Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
• Certified by: ETL, AHRI, DOE for safety, performance and efficiency
• Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption

• Outdoor Unit Manuals

  • Technical Brochure

  • Submittal Sheet
  • Installation Manual (Multi-Split Addendum)

  • Service Manual

  • AHRI Certificate

  • Energy Guide
