Description

Overview

Summary

• Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
• Cooling capacity: 12,000 BTU H with 21.5 SEER efficiency
• Heating capacity: 12,000 BTU H with 10.5 HSPF efficiency
• Voltage: 110~120V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System

• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections

• Energy-Star Certified

• AHRI Estimated Annual Operating Costs:
• • Cooling: $70.00
  • Heating: $231.00
  • [[SERIES]]

    What s Included

    • Indoor Unit
    • Outdoor Unit
    • Panel
    • Wireless Remote Control

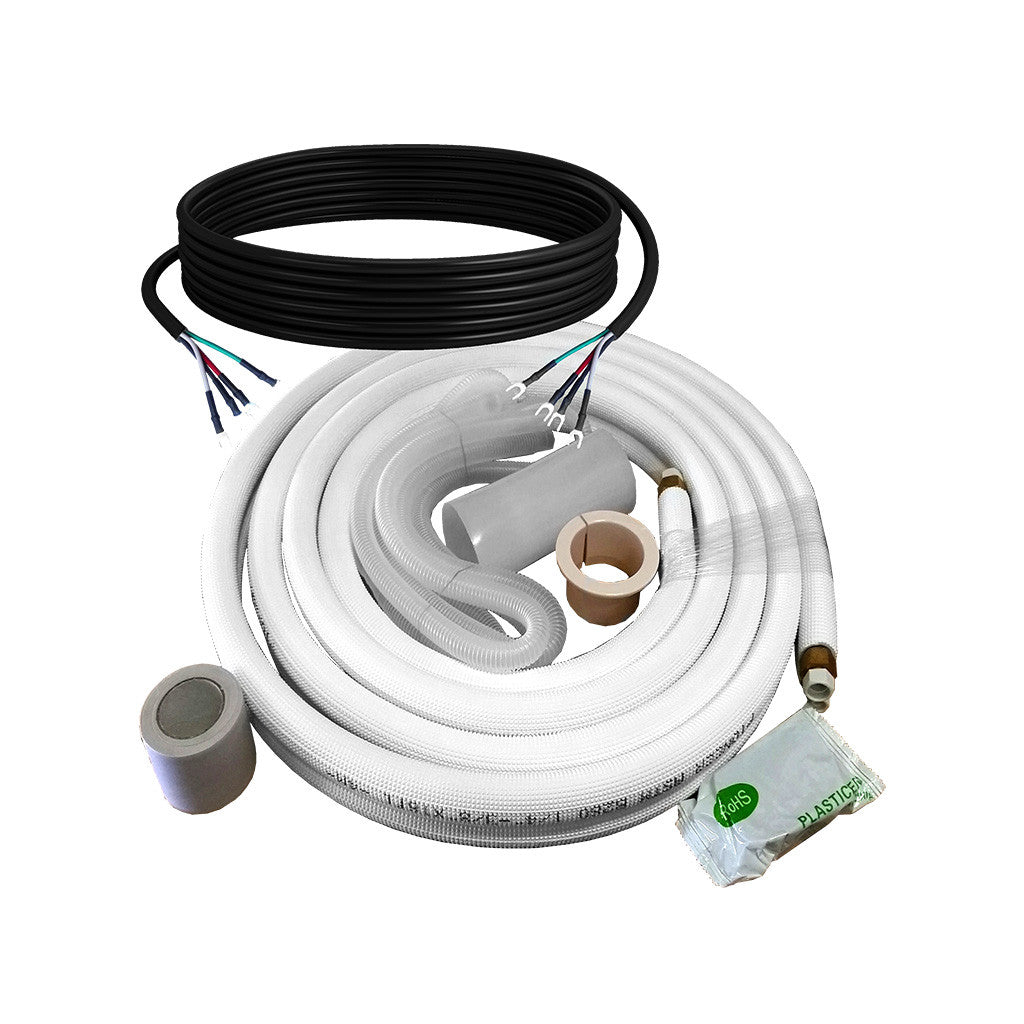

    • Various Installation Kit Options Available
    • Flare Connection Leak Guard Sealer
    • Installation Manual
    • User’s Manual
    • Manufacturer Warranty

    • Our Guarantee

      • 5 year parts limited warranty
      • 5 year compressor limited warranty

      • Features

        [[FEATURES]]

        Technical Information

        Certifications



        Performance Data

        • Power Supply: 110~120V, 60Hz, 1Ph

        • Cooling Rated Capacity: 12,000 BTU h

        • Cooling Capacity Range: 4,200~17,000 BTU h

        • Cooling SEER: 21.5 BTU w

        • Heating Rated Capacity: 12,000 BTU h

        • Heating Capacity Range: 4,300~17,100 BTU h

        • Heating HSPF: 10.5 BTU w
        • Refrigerant Type: R410a
        • Suitable Area: 350~450 Sq.F

        • Indoor Unit Data

          • Model: CB012GMFILCFHD
          • Air Flow (Hi Med Lo): 379 309 261 CFM
          • Sound Level (Hi Med Lo): 43.0 39.0 36.0 dB(A)
          • Net Dimensions (WDH): 22.5 x 22.5 x 10.3 Inches
          • Carton Dimensions (WDH): 25.8 x 25.8 x 11.5 Inches
          • Net Gross Weight: 35 41 Lbs

          • Panel Data

            • Net Dimensions (WDH): 25.5 x 25.5 x 2.0 Inches

            • Carton Dimensions (WDH): 28.0 x 28.0 x 5.0 Inches
            • Net Gross Weight: 6 10 Lbs

            • Outdoor Unit Data

              • Model: YN012AMFI22RPD
              • Sound Level: 57.5 dB(A)
              • Net Dimensions (WDH): 31.5 x 13.2 x 21.7 Inches
              • Carton Dimensions (WDH): 36.2 x 15.4 x 24.3 Inches
              • Net Gross Weight: 81 88 Lbs

              • Manuals & Downloads

                • Series Technical Brochure
                • Series User Manual
                • Series Installation Manual
                • Series Service Manual
                • Series Disassembly Guide
                • AHRI Certificate

                • Energy Guide

        Additional information

        Installation Kit Options	10 Ft, 16 Ft, 25 Ft, 33 Ft, 50 Ft, WITHOUT INSTALLATION KIT
